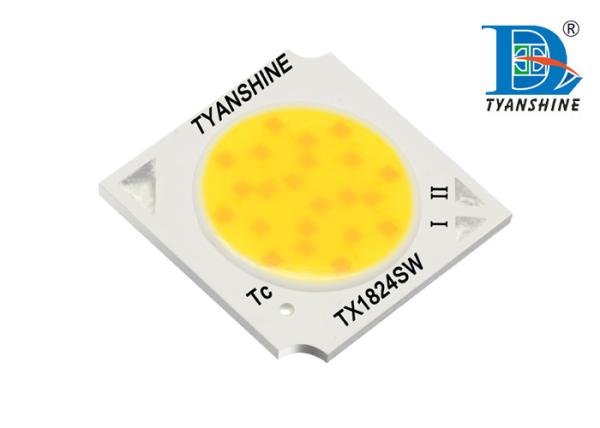

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays

Name: LES 14mm 24W Cob Led 800mA 4800lm Variable White Bicolor COB LED Arrays
Brand: TYANSHINE
Price: 1 USD

China LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays wholesale

Brand Name : TYANSHINE

Model Number : TX-1824SW14A-2765V33-01H80

Certification : RoHS, LM80 (Pending)

Place of Origin : CN

MOQ : 100

Packaging Details : In plastic tray

Input Voltage : 33V

Input Current : 800mA

Power : 24W

CCT : 2700K-6500K

Lumen : 4800lm

CRI : 80Ra / 95Ra

Dimension : 17.85*17.85mm

LES : Diameter 14mm

Contact Now

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays

Specification:

Item Code

Color

I_F
(mA)

V_F
(V)

Power

(W)

CCT (K)

CRI
(Ra)

Lumen
(lm)

LES
(mm)

TX-1824SW14A-2765V33-01H80

800

30-36

6000-6700

2600

Φ14

800

30-36

2700-2780

2240

(W - White, S - WarmWhite) , Ta = 25℃

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays

Features:

Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays

Product Tags:

Tuneable White COB

high power cob led
